DC-MASK-N95 Automatic face mask making machine

automatic face mask production line is used for N95 masks production
Availability:
Quantity:
Inquire Add to Basket

  • DC-MASK-N95

  • Denchern

Machine Technical Data

Model
DC-MASK-N95
Capacity
60-80 PCS/min
Voltage
220V/50hz
Dimension
9657*1508*1984mm（L*W*H）
Air source
0.6-0.8 Mpa
Power
16KW
Weight
1700Kg

workflow

Raw material feeding -> Nose clip feeding -> Welding the outline of the mask -> Ear loops welding -> Mask Forming -> Cut the shape of mask

Material Report

NO
Material
Diameter
Tube Diameter
Width
Thickness
Weight
Remark
1
Outside Nonwoven
Max 600mm
Φ76.2
260±2mm
NA
Max 20KG
1Layer
2
Meltbown Non woven
Max 600mm
Φ76.2
260±2mm
NA
Max 20KG
1-4Layer
3
Inside Non woven
Max 600mm
Φ76.2
260±2mm
NA
Max 20KG
1Layer
4
Nose clip
Max 400mm
Φ76.2
3-5±0.2mm
0.5-1.0±0.1mm
30KG
1roll/PE
5
Ear loop
Roll/carton
Φ50
5-8mm
Max 1.2MM
Max 10KG
2roll/carton


Main machine structure description

Material feeding unit
1 set
Material sealing and noise bridge build-in unit
1 set
Ear loops  welding unit
1 set
Mask folding and sealing unit
1 set
Mask delivery unit
1 set
Electric box
1 set


Previous:
Next:

Related Products

DC-370 Vision online inspection die cutting machine
DC-370 Vision online inspection die cutting machine
DC370-IML Die cutting machine
DC370-IML Die cutting machine

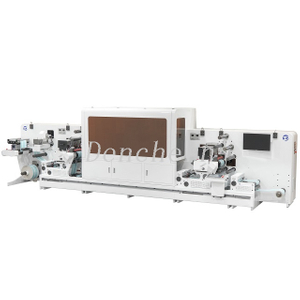

HYBRID 370 Digital printing machine
HYBRID 370 Digital printing machine

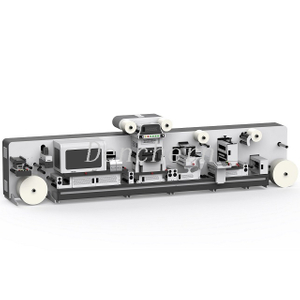

DCFM370-SUPER Die cutting dinishing machine
