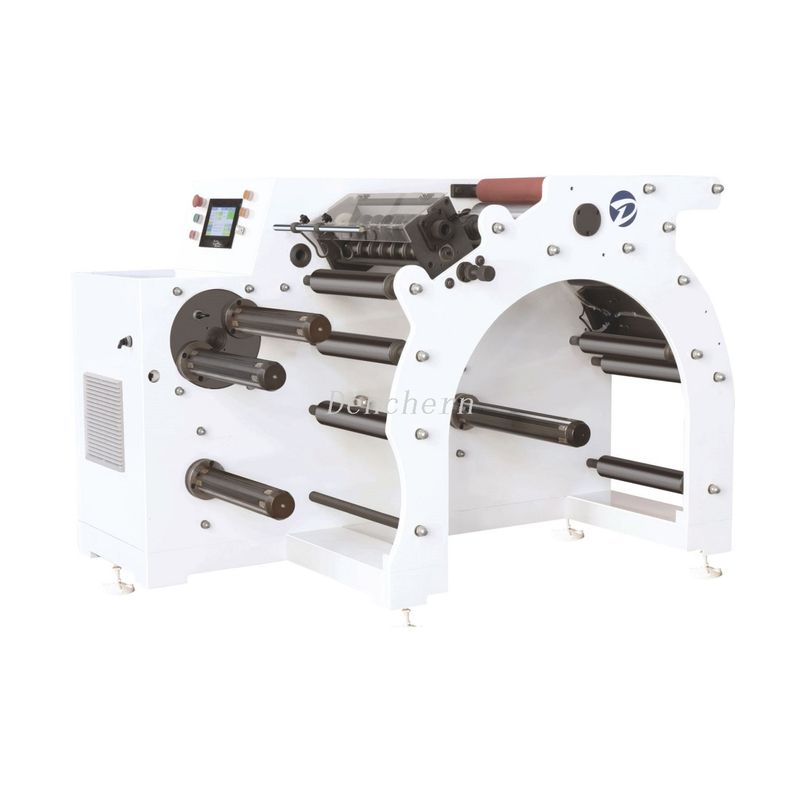

SR-370 slitting machine

Availability:
Quantity:
  • SR-370

  • Denchern

SR series automatic slitting machine mainly for narrow web label slitting.Turret rewinding unit, it saves time for change the finish rolls.It's suitable for different kinds size of rewinding core, with meter counter, number counter and less material stop machine function.

Model
SR-370
SR-480
SR-550
Speed
220m/min
220m/min
220m/min
Max Feed web
370
480
550
Max unwind dia
800mm
800mm
800mm
Max up rewind dia
200mm
200mm
200mm
Max down rewind dia
700mm
700mm
700mm
Razor knife
optional
optional
optional
Circular knife
6 sets
6 sets
6 sets
Precision
±0.1mm
±0.1mm
±0.1mm
Power
5kw
7kw
9kw
Dimension
1700*1200*1300mm
1700*1310*1300mm
1700*1380*1300mm
Weight(L*W*H)
750kg
900kg
1100kg
