DC-MASK-120-2 Automatic face mask making machine

Availability:
Quantity:
  • DC-MASK-120-2

  • Denchern

Product structure

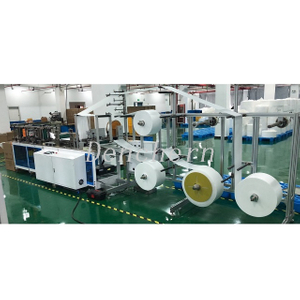

This machine consists of a main machine (face mask forming machine) and two mask ear belt welding machines (mask ear belt). The automatic production process of feeding, folding and pressing, cutting, welding and blanking is realized.
Support mask type:disposable 3/4 ply non-woven face mask
Model
DC-MASK-120-2
Capacity
100-120/min
Voltage
220V/60hz
Dimension
6500*3200*1700mm(L*W*H)
Mask Size
17.5*9.5cm
Power
11KW
Weight
1700Kg

Main machine parameters

mask production line adopts the latest advanced design, only need to put the production raw material device on the feeding rack, after the completion of debugging, the machine realizes automatic production, the equipment adopts ultrasonic welding. The output is 100-120 pieces per minute, the length of the bridge of the nose can be adjusted, the machine can produce non-woven cloth masks, smooth cloth masks, gauze masks, activated carbon masks, double nose line product size error of ±1mm, according to the need to replace part of the mold can achieve a variety of specifications of mask. Support 1-5 ply woven masks
Dimension
3400*650*1850mm(L*W*H)
Voltage
AC 220V,50HZ
Capacity
100~120 PCS/MIN
Power
3KW

mask ear belt welding machine

Ultrasonic welding method is adopted to fuse the elastic belt to the inside of both ends of the mask body, which is the last processing procedure for the production of the ear loop mask. Only one operator is needed to put  the mask body piece by piece in the mask tray, and the equipment will automatically complete the follow-up action until the finished product is finished. The machine adopts servo drive, the transmission is accurate and the speed is adjustable.
Dimension
1900*860*1800mm
Voltage
AC 220V,50-60HZ
Capacity
50-60PCS/MIN
Power
2.7KW
