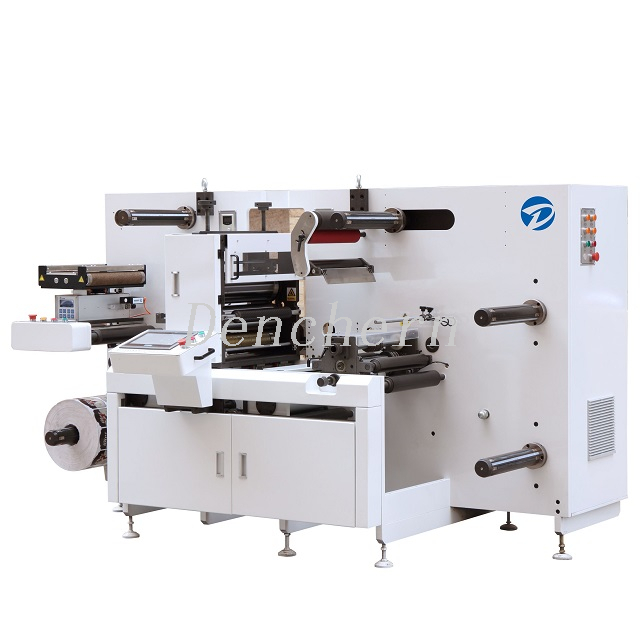

DC370-NOVA full rotary/intermittent die cutting machine

Quantity:
  • DC370-NOVA
  • Denchern

Character

This equipment is the latest research and development product, equipped with die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.

Model

370

Max. Rotary Speed

120m/min

Max. Intermittent Speed

300times/min

Max. Web Width

370mm

Die Cutting Repeat

50-444.5mm

Die Cutting Precision

± 0.15mm

Max. Unwinding Dia.

800mm

Max. Up Rewind Dia.

450mm

Max.Down Rewind Dia.

800mm

Rewind Inner Core Size

1-6inch (standard in 3 inch)

Magnetic Cylinder

80-210T (standard in 140T)

Thickness Of Material

20-300um

Air source

0.8Mpa

Dimension (L*M*H)

2500mm*1300mm*1530mm

Weight

2500kg

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Use the latest full-rotary and intermittent interchangeable technology and intelligent operating platform to improve efficiency.

3) Adopt international brand tracking Sensor with high precision sensor.

4) Running in a high automatization and intellectualization,no pollution


WENZHOU DENCHERN MACHINERY CO.,LTD.

Wenzhou  Denchern Machinery Co.,Ltd. mainly make label converting and finishing machine.
