CHARACTER:
Sheeter inspection machine is drive by servo system , its possible to combined with inspection system, recieving and stacking sheet label automaticly, taking out defect label automaticly.
Its suitable for adhesive paper, PVC, PE and PP etc.
Model | ISR370-SHEET |
Max. Web Width | 370mm |
Max. Machine Speed | 200m/min |
Inspection Cutting Speed | 300times/min |
Inspection Cutting Accuracy | ± 0.15mm |
Max. Unwind dia. | 800mm |
Max. Rewind dia. | 800mm |
Voltage | AC 380V.50HZ |
Dimension(L*M*H) | 6000mm*1250mm*1350mm |
Air Source | 0.8Mpa |
Power | 10KW |
Weight | 1800kg |
Rewind Inner Core Size | 1-6inch(standard in 3 inch) |
Thickness Of Material | 60um-300um |
Used | adhesive paper, PVC, PE and PP etc. |

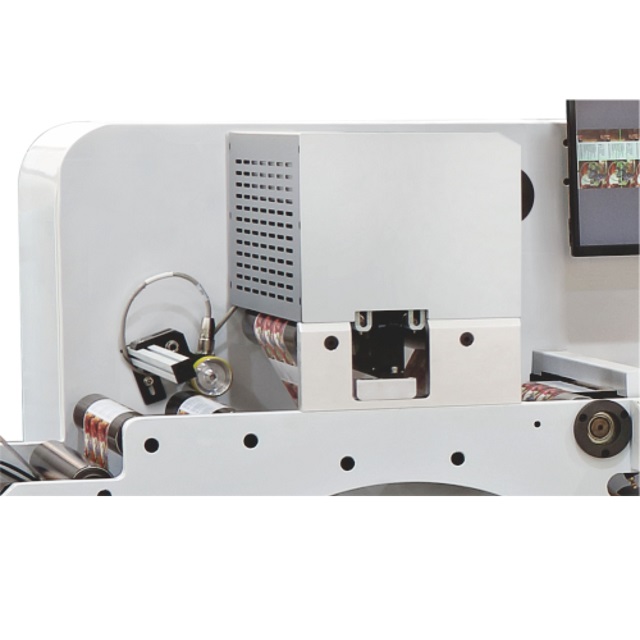

Inspection System
Inspection items: missing labels, dirty points, color difference, leak impression, scratches, deviation etc.
